Technical specs of JZX100

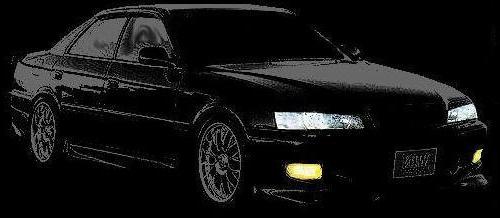

Toyota Mark II, Chaser, Cresta
I took these from a Japanese site, translated
with help of Worldlingo.
The original
site is also listed in the Links section.
| DATA | TOURER V/ROULANT G | TOURER S/ROULANT |
|
Dimensions Length x width x height (mm) |
MARK II 4760x1755x1400 | <- |
| Chaser 4715x1755x1400 | ||
| Cresta 4750x1755x1420 | ||
| Track front/rear (mm) | 1480/1490 | 1480/1495 |
| Wheel base (mm) | 2730 | <- |
| Ground clearance (mm) | 150 | 155 |
| Vehicle weight (kg) | ECT-iE/1480 | 1400 |
| MT/1470 | ||
| Engine name | 1JZ-GTE | 1JZ-GE |
| Engine type | Water cooled turbocharged inline 6 cylinder | Water cooled inline 6 cylinder |
| Bore x stroke (mm) | 86.0x71.5 | <- |
| Displacement (cc) | 2491 | <- |
| Compression ratio | 9 | 10.5 |
| Ignition system | Direct fire ignition | <- |
| Turbo | Single CT15B | none |
| Maximum Power | 280ps/6200rpm | 200ps/6000rpm |
| Maximum Torque | 38.5kgm/2800rpm | 26.0kgm/4000rpm |
| Fuel system | EFI | <- |
| Injector size and type | 380cc/min Top feed | 295cc/min Top feed |
| Steering | Power assist rack and pinion | <- |
| Transmission (AT/MT) | ECT-iE/5MT | ECT-E |
| Gear ratio, 1st gear (AT/MT) | 2.531/3.251 | 2.804/- |
| Gear ratio, 2nd gear (AT/MT) | 1.531/1.955 | 1.531/- |
| Gear ratio, 3rd gear (AT/MT) | 1,000/1.310 | 1.000/- |
| Gear ratio, 4th gear (AT/MT) | 0.705/1.000 | 0,705/- |
| Gear ratio, 5th gear (AT/MT) | -/0.753 | - |
| Gear ratio, Reverse (AT/MT) | 1.880/3.180 | 2.393/- |
| Final drive ratio (AT/MT) | 3.909/3.727 | 4.100/- |
| Suspension type Front / Rear | Front ^ ?_?u???E?C?b?V???{?[?? | |
| Rear ^ ?_?u???E?C?b?V???{?[?? | ||
| Front shock absorber - damping force (at 0.3m/s) | Bump 67kgf / Rebound 210kgf | Bump 61kgf / Rebound 164kgf |
| Rear shock absorber - damping force (at 0.3m/s) | Bump 39kgf / Rebound 94kgf | Bump 42kgf / Rebound 89kgf |
| Camber Front / Rear | -0 15`/-0 40` | <- |
| Toe in Front / Rear | 1 /2 | <- |
| Caster | -5 45` | <- |
| King pin | -9 00` | <- |
| Brake type | Front ^ ???F???`???[?e?B?b?h?f?B?X?N | Front ^ ???F???`???[?e?B?b?h?f?B?X?N |
| i Front ^ Rear j | Rear ^ ???F???`???[?e?B?b?h?f?B?X?N | Rear ^ Disk |
| Brake rotor size front/rear (mm) | Front 296x32 Rear 307x16 | Front 275x25 Rear 291x10 |
| Tire Size Front / Rear | Front 205/55r16 | Front 205/55r16 |
| Rear 225/50R16 | Rear 205/55r16 | |
| Wheel Front / Rear | Front 16X6.5JJ+50 | Front 16X6.5JJ+50 |
| Rear 16X7.5JJ+55 | Rear 16X6.5JJ+50 |
